Mini Skid Steer Loader MMT80

Mini Skid Steer Loader MMT80

Engine: Honda,gasoline, 25hp./ Perkins/Kubota, diesel, 25hp
Rated Loading Capacity: 400kgs.
Mechanical control or joystick control

•Self Leveling Loader Arms,well-balanced and stable
•Select valve for attachment or travel. Operator can select low or high speed ground speed. Low speed directs more hydraulic power to the attachment and high speed directs more power to the wheels.
•Compact size to fit through a narrow gate;
•Universal compact utility loader mounting plate and quick-attach system to quickly and easily switch between any standard attachment
•Ergonomic control and high drive speed enhance jobsite efficiency and productivity.
•Stand-on platform for operator safety and comfort

Technical Specifications
Model MMT80
Engine
Model Honda GX690
Perkins 403J-11/Kubota D902
Fuel Type Gasoline
Diesel
Gross Horsepower 25hp
25hp
Rated Speed 3600rpm
2800rpm
Fuel Tank Capacity 27L
27L
Cooling System Air
Liquid
Performance
Operating Capacity 1520kgs
Tipping Capacity 800kgs
Rated Loading Capacity 400kgs
Travel Speed 4.9km/h
Self-weight 1180kgs
Hydraulic System
Hydraulic System Flow 10.5gal/min
Hydraulic System Pressure 250bar
Tank Capacity 32L

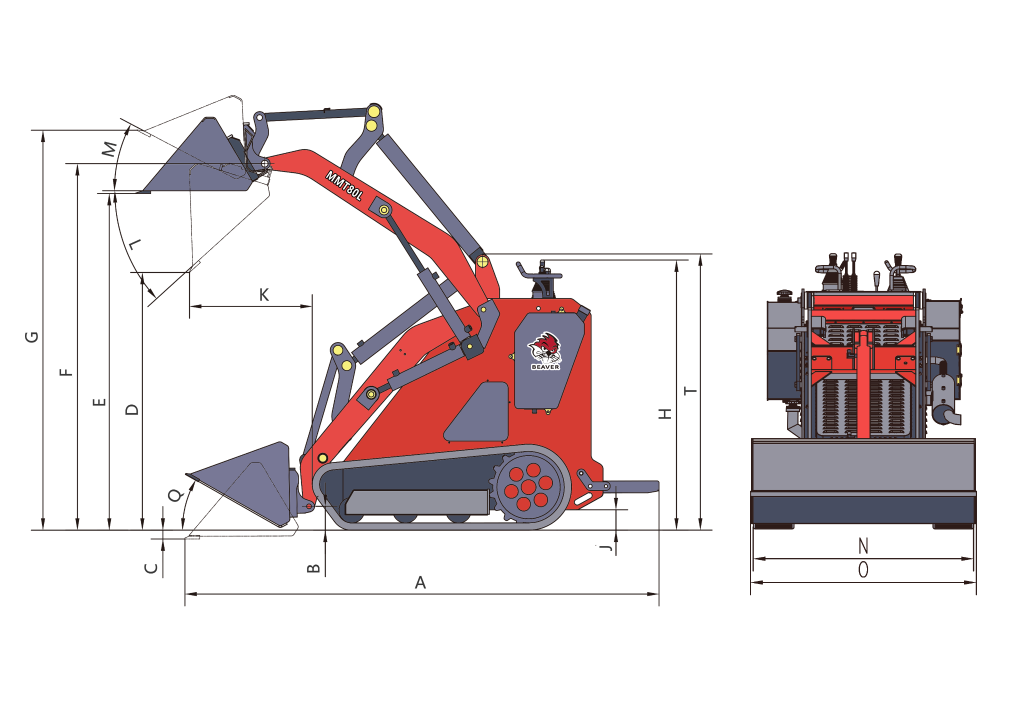

General Dimensions
A 2519mm
B 121mm
C 30mm
D 1312mm
E 1714mm
F 1866mm
G 2036mm
H 1241mm
J 104mm
K 163mm
L 42°
M 28°
N 1084mm
O 1110mm
T 1405mm
