Overview

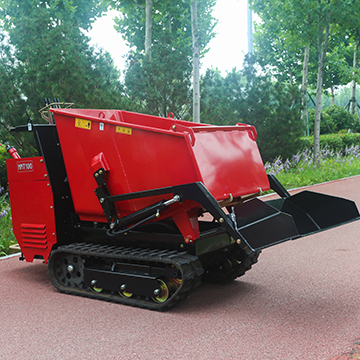

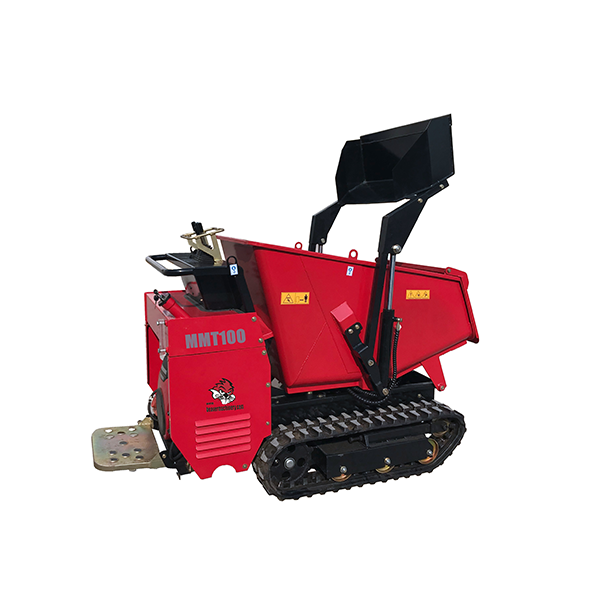

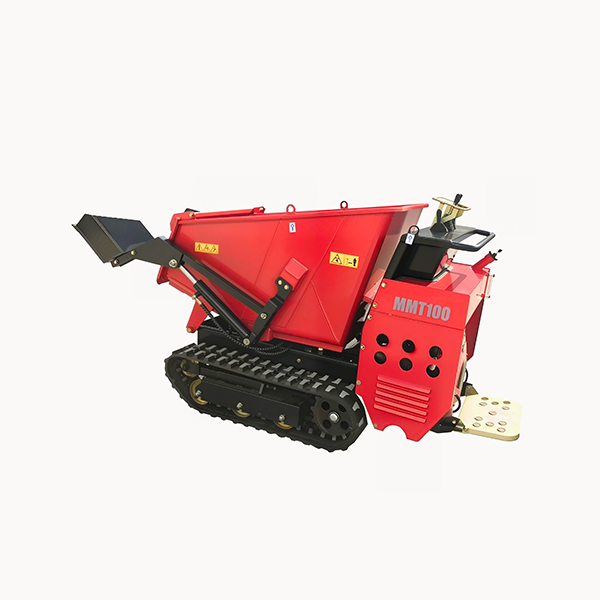

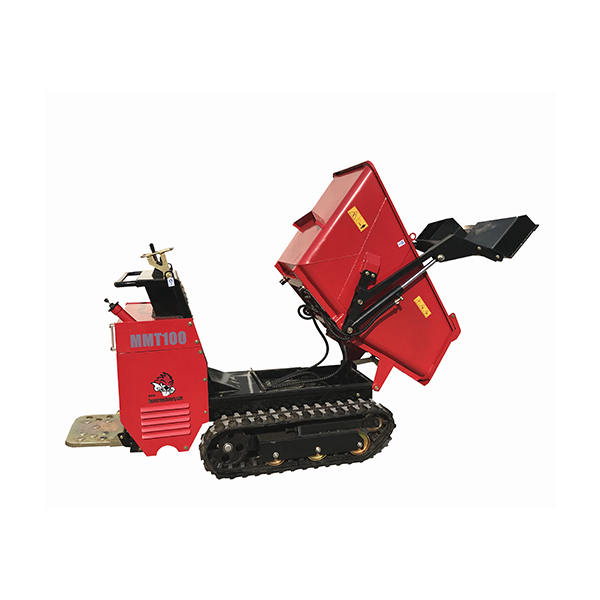

Mini track dumper combines a loader and transporter in one compact machine. Ideal for tight job sites, it features a hydraulic front bucket for easy material pickup and a robust track system for superior traction. Perfect for landscaping, farming, and construction.
Features & Benefits

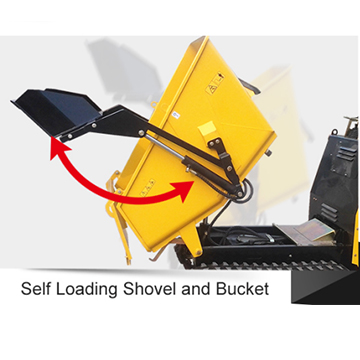

Self-Loading Efficiency
The integrated hydraulic arm eliminates the need for separate loading equipment, allowing one operator to load and transport materials quickly.
All-Terrain Capability

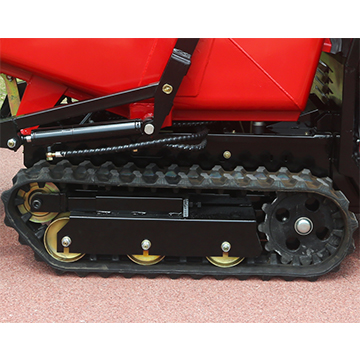

Robust rubber tracks provide extra load capacity and exceptional traction and stability on soft ground, mud, sand, and slopes without damaging finished surfaces.

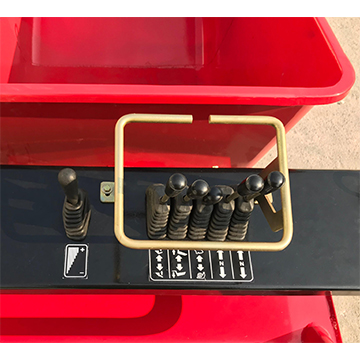

Simple & Intuitive Controls
Simple and intuitive control makes the dumper easy to learn, effortless to operate, smooth and responsive.
Durable & Powerful
Powered by the reliable Honda 13hp electric start engine, it delivers excellent performance and maximum strength, ensuring efficient operation, reduced operator fatigue, and consistent power output on demanding job sites.
Versatile Material Handling

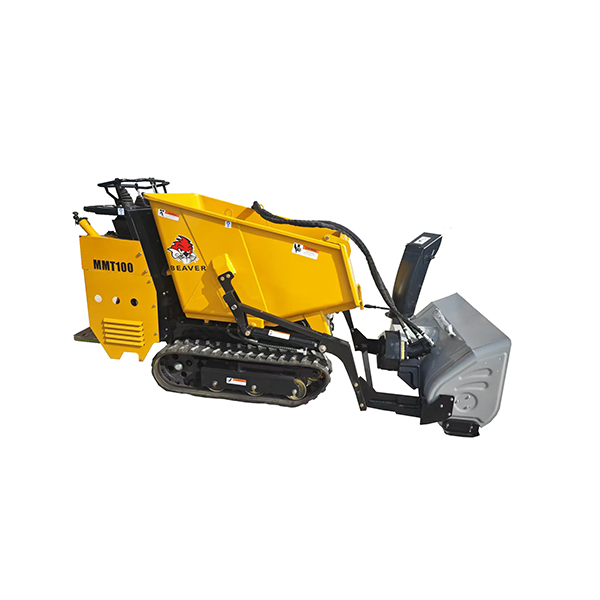

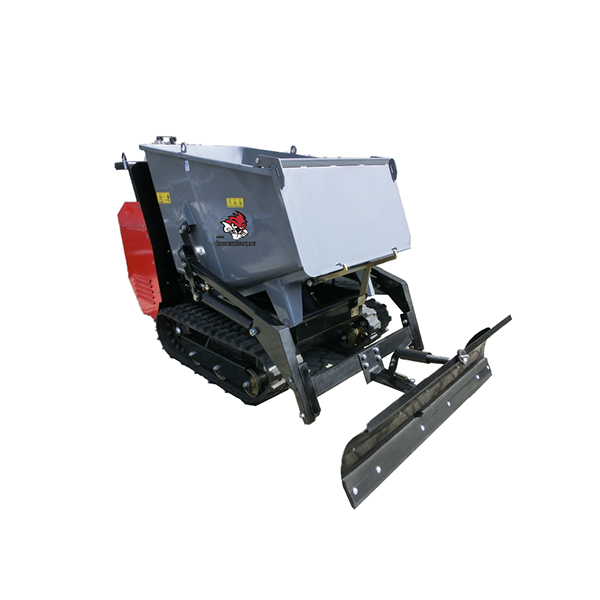

Perfect for moving soil, gravel, demolition debris, or agricultural materials with precision and ease. Available with snow blower, snow blade or concrete mixer attachment.
Serviceability

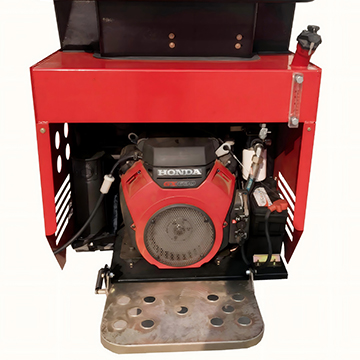

Engine cover folds back to provide convenient access to the engine, gasoline tank, battery, and filters.
Parameters

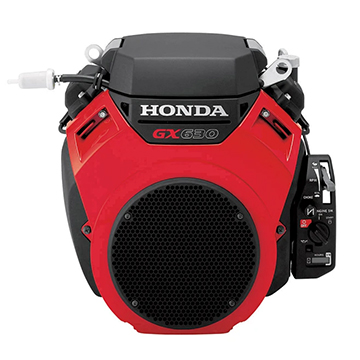

Make: Honda
Model：GX630
output:21hp (15.5kw) / 3600rpm
Type:2 Cylinder, 4 Stroke, Air-Cooled, OHV
Fuel Type:Gasoline
Displacement：688cc
Start：Electric
Type：Hydrostatic
Hydraulic Pump：Gear Pump
Flow：2 x 21.6 L/min
Hydraulic Motor：2 x orbital
Max. Pressure：180 bar
Main Valve：5
Operating Weight：655 kg
Payload：1200kgs
Max. Travel Speed：4.9 km/h
Bucket Capacity：0.6 m³
Max. Gradeability：20°
Ground Clearance：150mm
Track Width：200mm
Track Rollers：3
